DX12

Coaxial stage return, passive

TECHNICAL DATA

Frequency band of use(± 10 dB)

50 Hz - 20 kHz

SPL max at 1m

130 dB SPL (1)

Nominal directionality (H° x V°)

90° x 90° (2)

Nominal impedance

8 ohms

Transducers

Source topology

Acoustic load

Amplification channels and sections

1 x 12" coaxial ventilated motor - 1 x 1" HF motor

Coaxial

Bass Reflex

2-way, mono amplified

AES power (W)

Maximum permissible power (W)

400 W (3)

1600 W (4)

Dimensions H,W,D (mm)

Weight (kg)

Connectors

IP

520 x 495 x 265 mm

19 kg

2 x Speakon NL4MP (5)

43

DX12

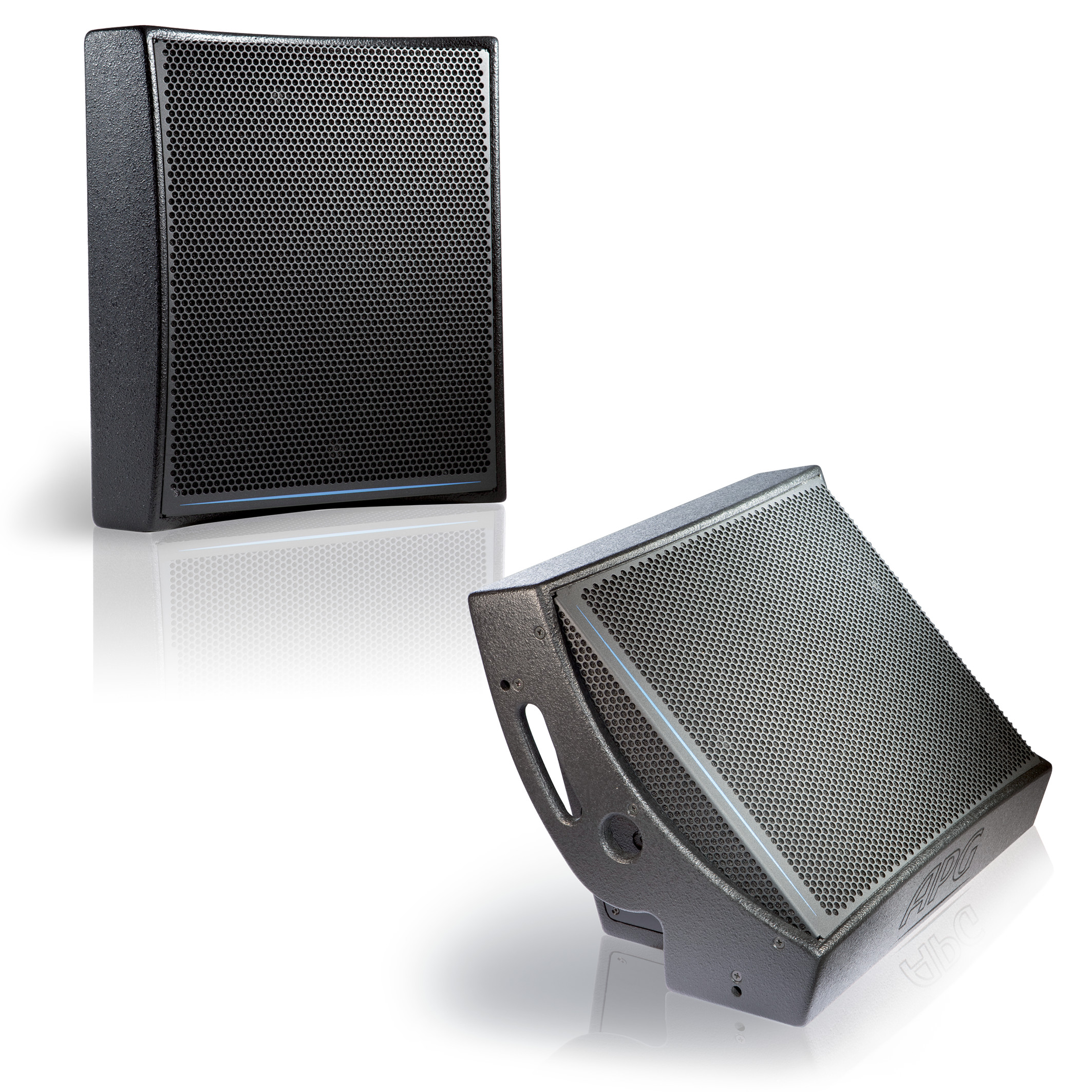

The APG DX12 is a compact, two-way, full-range multi-purpose loudspeaker. The bass/midrange driver is a 12" Neodymium force-fed bass-reflex driver. The treble section is driven by a 1″ coaxial Neodymium HF driver with extended response up to 20 kHz.

The DX12 uses coaxial technology coaxial technology, which gives it a perfectly coherent sound field over a 90° conical aperture. Passive filtering is designed to manage the phasing of the phase of the loudspeakers and to obtain linear amplitude and phase responses. all while keeping distortion levels to a minimum.

The original construction of naturally offers two sides at 30° and 45°, as well as two side panels in which all the in which all the ergonomic features are integrated: two handles for easy handles for easy gripping and handling of the speaker in any position, protected positions, protected connectors, a stand base and a receptacle for hanging options. hanging options. The 12ATP90 option includes an indexing plate to adjust the angle ETDX12 bracket that is concealed in the blanks. The QFS4 option includes 4 pieces of fittings for quick and secure attachment by means of screws or ball pins.
